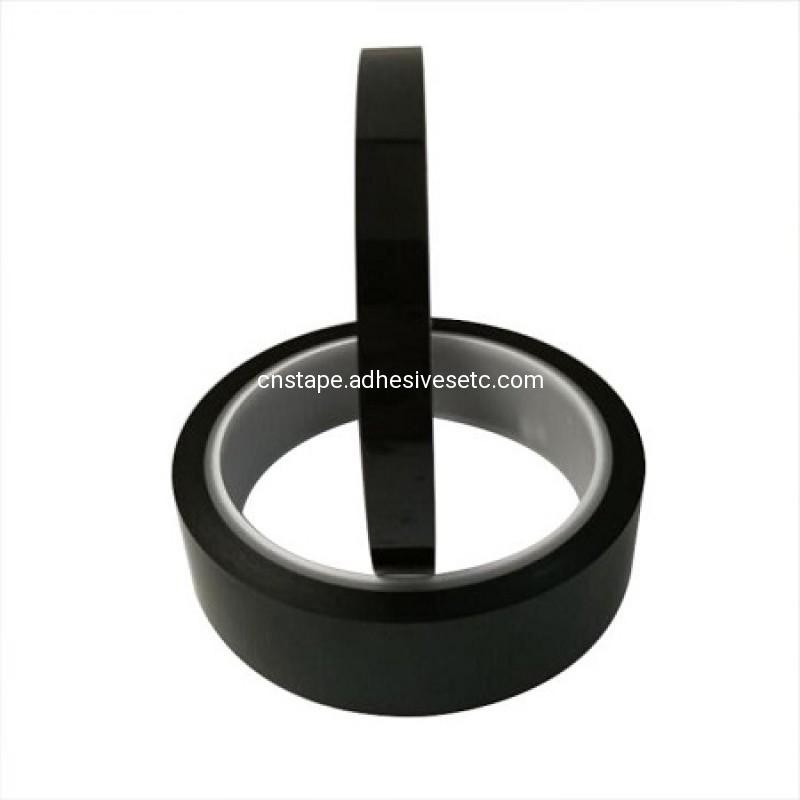

Black Kapton Tape
Polyimide film, a special heat-resistant insulating material, has excellent insulation, wear resistance, acid and alkali resistance. It can withstand high temperature of 260 ℃ for 30 minutes, and can be used for a long time at 180 ℃.
This product has excellent electrical performance, high insulation (≤ 6.5kv), high temperature, low temperature, acid and alkali resistance, low electrolysis, good mechanical properties, abrasion resistance, tear resistance, special adhesive treatment, strong adhesion, no residual glue left on the covered surface after tearing off. This product is widely used in anti welding protection, transformer coil high temperature insulation binding; capacitor insulation material, PCB plate gold finger high temperature spray shielding protection, mobile phone lithium battery manufacturing binding.
The regular color is amber, and the special black product is also available.
Product parameters of high temperature tape:
Specification
thickness (mm) surface resistance (Ω) adhesion force (g / 25 mm) tensile strength (kg / 25 mm) elongation at break (%) corrosion resistance temperature resistance (℃) electrical strength (volts)
500*33 0.06 1×106 800 18 30 1.0 260 6000
500*33 0.08 1×106 800 18 30 1.0 260 6000
