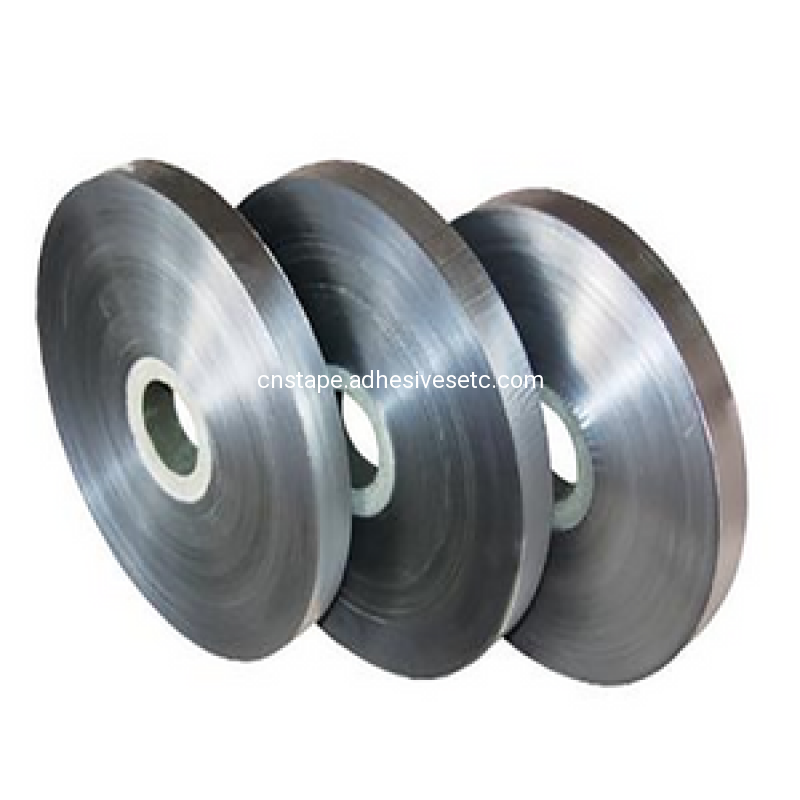

Hot melt aluminum foil mylar tape

Hot melt aluminum foil mylar tape

Hot melt aluminum foil Mylar tape

Single side hot melt aluminum foil Mylar tape

Double sided hot melt aluminum foil Mylar tape

Hot melt Mylar tape

Color: natural color (silver), blue, gold

Thickness: 0.02mm, 0.025mm, 0.03mm, 0.038mm

Specification: 500MM*2000M

This product has good shielding effect for electromagnetic radiation interference and good performance for grounding electrostatic discharge. At the same time, this product is also used for soldering tin,

Parameters:

Material: Cu 99.98%

Substrate thickness: 0.018mm-0.05mm

Adhesive thickness: 0.035mm

Colloidal composition: conductive adhesive (heat sensitive acrylic adhesive)

Adhesion: 1.5 ~ 1.3kg/25mm

Temperature resistance: - 10 ℃ - 120 ℃

Tensile strength: 4.5-4.8kg/mm

Elongation: 7-7% - 3-4%

remarks:

1. The test condition is room temperature 25 ℃ and relative humidity is below 65 ℃. ASTM-D1000 test results are used

2. When the goods are stored, please keep the indoor dry and ventilated for a long time;

3. The product is mainly used to eliminate electromagnetic interference EMI and isolate the harm of electromagnetic wave to human body. It is mainly used in computer peripheral wire rod, computer display and transformer manufacturer.

4. It is divided into double-sided conduction and single-sided conduction.

There are 51mm and 76mm (paper tube or rubber tube) for selection.

There are natural colors (silver), blue and gold.

Pink and other colors can be produced according to customers' requirements.

The width of slitting can be as narrow as 4mm.

This specification can be produced in the form of roll or jumbo roll.
